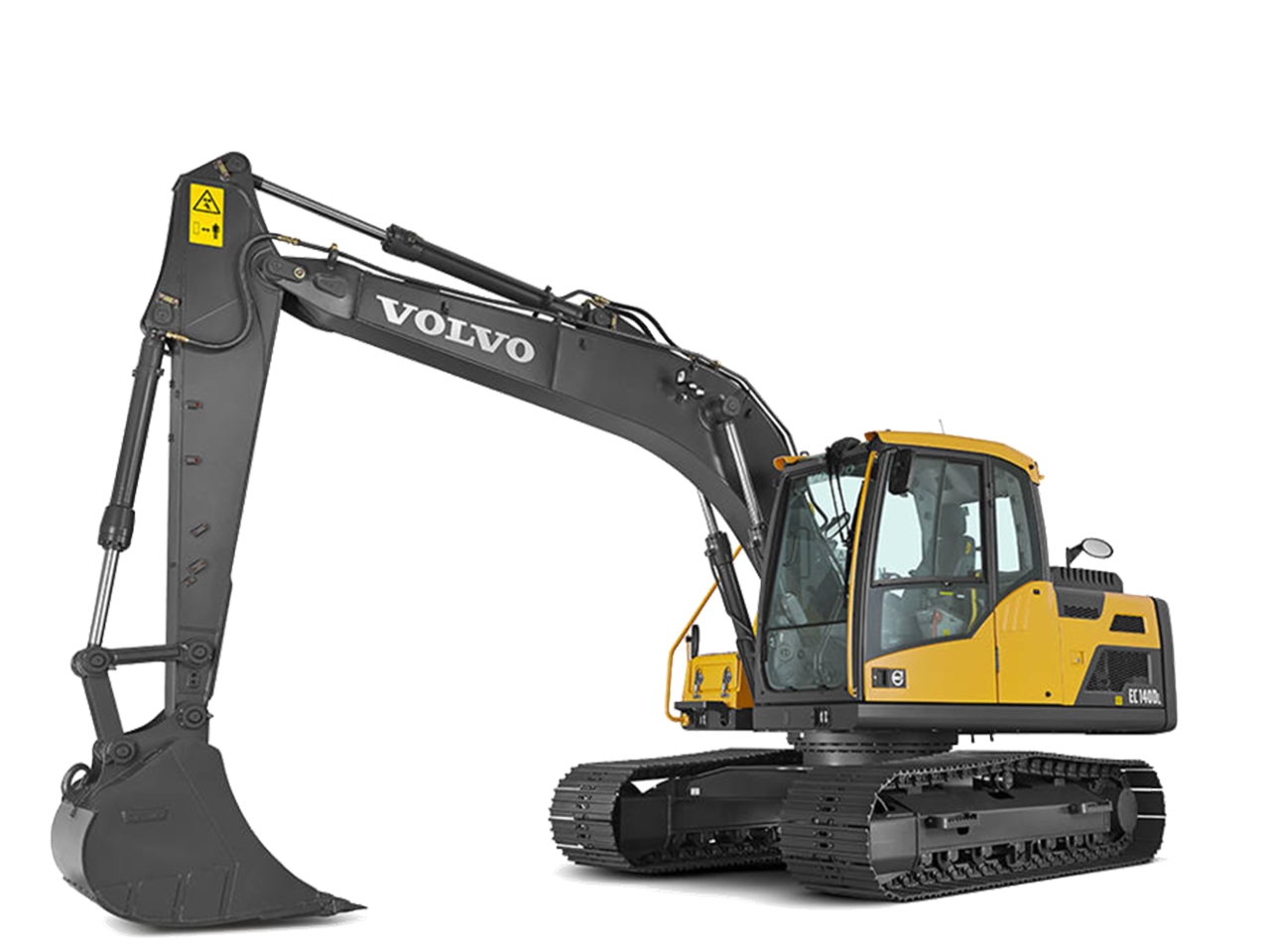

Volvo EC140DL Crawler Excavator

  • Operating Weight13000 kg
  • Horse Power104 hp
  • KW77.4 kW

Please note: all fields are required to enable your query to be directed to your local TDX expert. Cancel

Contact details:
Your query:
* Please check the "I'm not a robot" box above to continue.
Description

Description - Volvo EC140DL Crawler Excavator

With plenty of power the Volvo EC140DL crawler excavator is perfect for a wide range of jobs including general drainage, landscaping and road works. Like all Volvo excavators the EC140DL has proven, industry-leading fuel economy and an extremely comfortable and ergonomic cab ensuring a productive day everyday.

Features

Features - Volvo EC140DL Crawler Excavator

Image alt tab

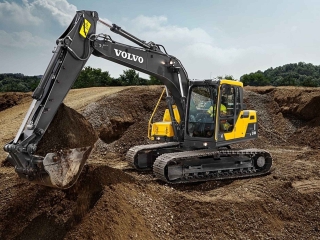

The EC140D has outstanding power and controllability for top performance. Superior digging power and machine stability results in faster cycle times and increased productivity.

Image alt tab

Make more profit with the EC140D. This machine's reliability and durability increases your uptime allowing you to keep working and earning. With outstanding fuel efficiency and power for excellent productivity, it allows you to work faster and get more done.

Image alt tab

Work efficiently and profitably with Volvo's intelligent ECO mode.

This feature contributes to the machine's total improved fuel efficiency –without any loss of performance. The design optimizes flow and pressure while maintaining digging power and swing torque. Choose the right work setting for the job at hand.

Image alt tab

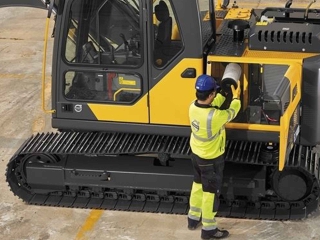

The EC140D is built to ensure servicing is safe, quick and easy, featuring anti-slip plates, ground-level service access and centralized filters and greasing points. Long service intervals enhance machine availability and increase uptime for maximum productivity.

Image alt tab

Operate in a comfortable cab for a more productive working day. The EC140D has a premium cab is equipped with an easy-to-view monitor, spacious and safe operator environment, offering enhanced all-around visibility, an adjustable seat and ergonomic controls.

Specifications

Specifications - Volvo EC140DL Crawler Excavator

  • Operating weight 13,000 - 16,730 kg
  • Gross power 77.4 kW (104hp) @2,200rpm
  • Bucket capacity 0.6 - 0.64 m³
  • Lifting capacity, along undercarriage 3,500 kg at reach / height 6 / 1.5 m
  • Max. digging reach 8,330 mm
  • Max. digging depth 5,530 mm
  • Breakout force, SAE J1179 (Normal) 82.2 kN
  • Breakout force, SAE J1179 (Boost) 87.2 kN
  • Tear out force, SAE J1179 (Normal) 61.8 kN
  • Tear out force, SAE J1179 (Boost) 65.5 kN
  • Overall width 2,590 mm
  • Tail swing radius 2,200 mm
