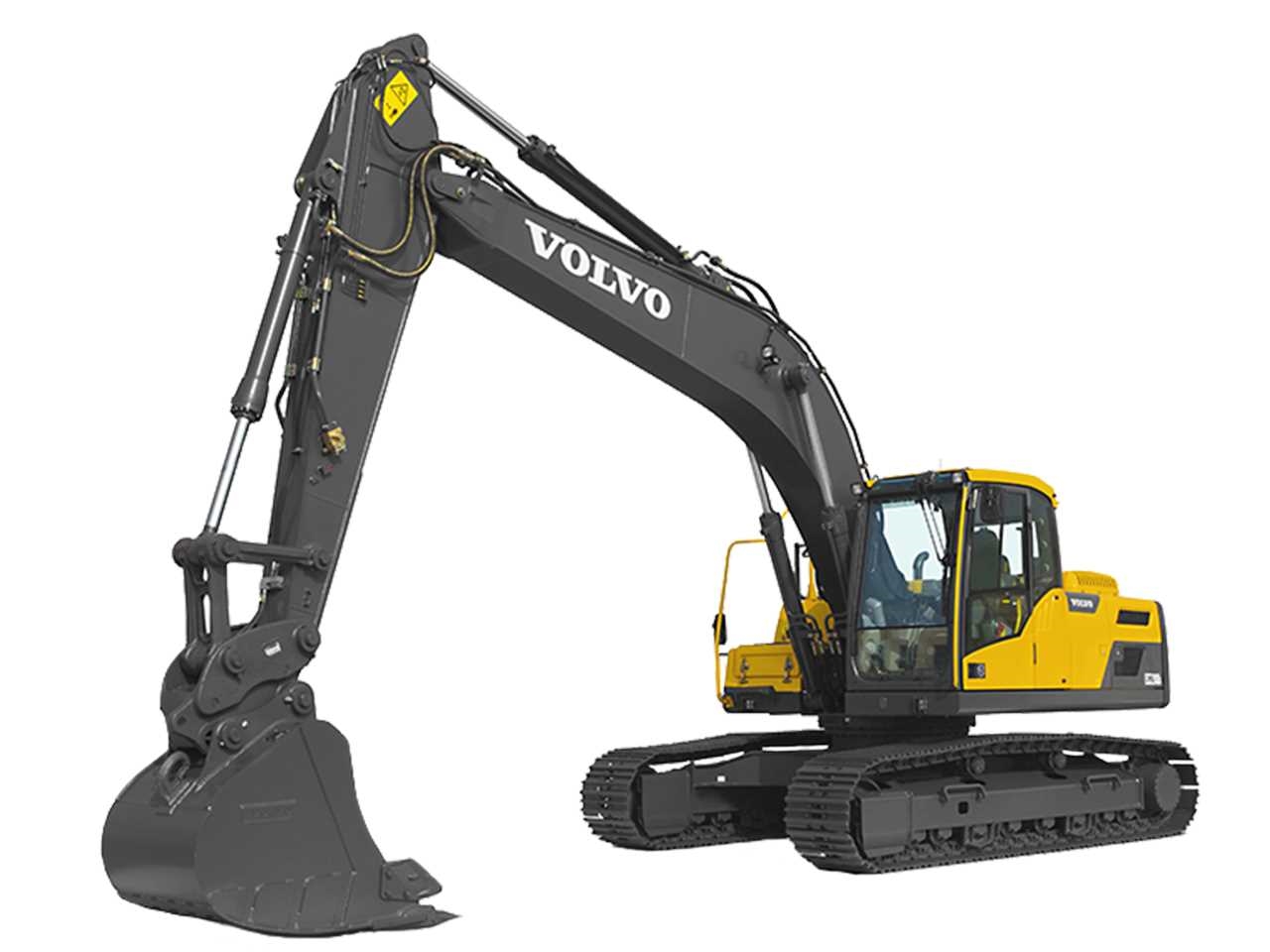

Volvo EC220DL Crawler Excavator

  • Operating Weight20900 kg
  • Horse Power165 hp
  • KW123 kW

Please note: all fields are required to enable your query to be directed to your local TDX expert. Cancel

Contact details:
Your query:
* Please check the "I'm not a robot" box above to continue.
Description

Description - Volvo EC220DL Crawler Excavator

The Volvo EC220DL crawler excavator is designed for ultimate productivity. Fitted with Volvo's award winning ECO mode and a premium Volvo D6 diesel engine, your fuel efficiency will be maximised with this machine and your operating costs reduced. You won't want to get out of the seat of the ultimate comfort cab, keeping operators efficient and in control all day long.

Andrew takes a walk-around the EC220DL

On the Job with Simken Concrete Recycling

Features

Features - Volvo EC220DL Crawler Excavator

Image alt tab

Featuring a new electro-hydraulic system, the EC220D provides you with the power, controllability and versatility you need, when you need it. Whether you're working in the road construction, quarry, trenching or any other application, this machine will surpass your expectations.

Image alt tab

With Volvo's unique ECO mode, a new hydraulic system and a premium Volvo D6 diesel engine, you'll soon start to reap the benefits of reduced operational costs. Maximize your fuel efficiency with Volvo.

Image alt tab

Easy service access - With safe and easy access to centralized filters and grouped greasing points, you'll spend less time maintaining your machine and more time earning money with Volvo.

Image alt tab

The EC220D cab puts the operator in control facilitating optimal conditions for productivity. With superior visibility, easy to access controls and built in comfort, it's no wonder operators experience less fatigue and feel more productive in this spacious and safe working environment.

Specifications

Specifications - Volvo EC220DL Crawler Excavator

  • Operating weight 20,900 - 24,400 kg
  • Gross power 123 kW (165hp) @ 1,800rpm
  • Bucket capacity 0.52 - 2.1 m³
  • Lifting capacity, along undercarriage 7,060 kg, at reach / height 6 / 1.5 m
  • Max. digging reach 10,390 mm
  • Max. digging depth 7,330 mm
  • Breakout force, SAE J1179 (Normal) 130 kN
  • Breakout force, SAE J1179 (Boost) 137 kN
  • Tear out force, SAE J1179 (Normal) 93 kN
  • Tear out force, SAE J1179 (Boost) 98 kN
  • Overall width 2,700 mm
  • Tail swing radius 2,750 mm
