Volvo EC350DL Crawler Excavator

  • Operating Weight34300 kg
  • Horse Power282 hp
  • KW210 kW

Please note: all fields are required to enable your query to be directed to your local TDX expert. Cancel

Contact details:
Your query:
* Please check the "I'm not a robot" box above to continue.
Description

Description - Volvo EC350DL Crawler Excavator

Power unleashed! The Volvo EC350DL is a truly powerful production machine designed for performance. Fitted with Volvo's award winning ECO mode and a fuel efficient Volvo D8 engine, if you are looking for faster cycle times, high digging power and low fuel consumption, then look no further, this is the machine for you!

Features

Features - Volvo EC350DL Crawler Excavator

Image alt tab

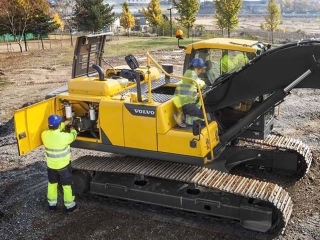

Easy service access - With safe and easy access to centralized filters and grouped greasing points, you'll spend less time maintaining your machine and more time earning money with Volvo.

Image alt tab

Built to last. Quality is one of Volvo’s core values and it goes hand-in-hand with reliability and durability. Volvo machine builds pay particular attention to having all the components working at a high level of capacity but also being built to stand the test of time – providing the customer and operator with peace of mind.

Image alt tab

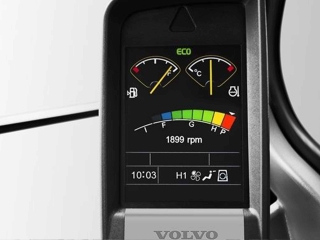

Work efficiently and profitably with Volvo's intelligent ECO mode.

This feature contributes to the machine's total improved fuel efficiency –without any loss of performance. The design optimizes flow and pressure while maintaining digging power and swing torque. Choose the right work setting for the job at hand.

Image alt tab

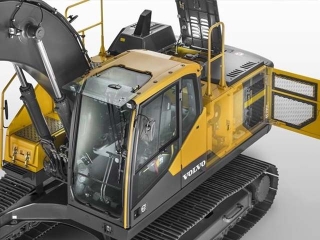

We know that when operators are comfortable they experience less fatigue and work more productively. That's why the new, modern styling of the D-series cab provides superior visibility, a safe and spacious working environment and easy to access controls – right where you'd want them.

Specifications

Specifications - Volvo EC350DL Crawler Excavator

  • Operating weight 34,300 - 38,700 kg
  • Gross power 210 kW (282hp) @ 1,800rpm
  • Bucket capacity 1 - 2.53 m³
  • Lifting capacity, along undercarriage 12,480 kg, at reach / height 6 / 1.5 m
  • Max. digging reach 11,110 mm
  • Max. digging depth 7,480 mm
  • Breakout force, SAE J1179 (Normal) 177 kN
  • Breakout force, SAE J1179 (Boost) 193 kN
  • Tear out force, SAE J1179 (Normal) 156 kN
  • Tear out force, SAE J1179 (Boost) 170 kN
  • Overall width 3,190 mm
  • Tail swing radius 3,560 mm
